REVIEW
12-lead ECG with automatic contour analysis
With the help of Poly-Spectrum-8/EX, it is possible to conduct a full range of studies of the electrical activity of the heart - from routine ECG to stress testing and assessment of the autonomic nervous system by the WMD method, as well as to monitor the process of cardiac rehabilitation. In addition to the standard 12 ECG leads, the device has a channel for recording the frequency and rhythm of breathing. On request, the cardiograph can be equipped with additional modules for a comprehensive heart assessment.
Wireless & Portable
With the advent of Poly-Spectrum-8/EX, it became possible to record ECGs of real quality during stress testing. The absence of a communication cable with the computer not only avoids interference caused by cable fluctuations, but also provides freedom of movement for the patient during the examination. ECG transmission is carried out via a radio channel via a Bluetooth interface. The communication range is about 8 meters.
Can run Android
Poly-Spectrum-8/EX differs from our other electrocardiographs in that it can operate both under the control of a Windows-based personal computer and with the help of a mobile application. The application is installed on any smartphone or tablet running Android and is available for download right now.
Ideal for load testing

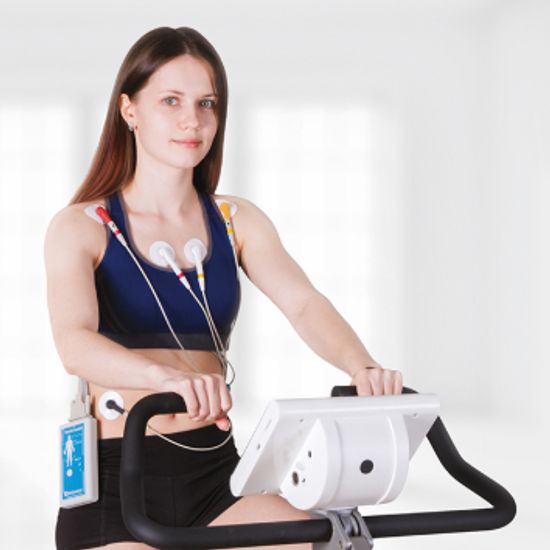

Bicycle ergometry, treadmill test, ortho test and Barani chair test will reveal to you all the best qualities of Poly-Spectrum-8/EX. It is in the conditions of intense movements of the subject that the advantages of wireless ECG transmission can be fully appreciated. After all, the electrocardiograph is located directly on the patient's body, which means that a short lead cable can be used, and its oscillations will no longer affect the quality of the cardiogram.
Maintains an unfiltered ECG
If you forget to set the high-pass filter during ECG recording, you can always do it during the "encryption", because the record is stored in an unfiltered form.
Support for the HL7 and DICOM data transfer interfaces allows you to include Neurosoft diagnostic systems in the information space of the clinic.
Currently, all large and a number of small clinics are equipped with information systems in which medical data are stored and processed. To work fully in such institutions, the software must be able to integrate into such information systems. The most common standard for the exchange of health information is HL7 (Health Level 7).
Neurosoft software supports HL7 messaging. However, HL7 only defines the message format and general principles of data transfer, and each specific information system can use its own data exchange scenario. The specialists of our company are ready to customize the software to the needs of any clinic in order to ensure the most effective integration using the HL7 protocol.
Neurosoft software also supports the DICOM network protocol. Through the DICOM Modality Worklist service, the diagnostic software can exchange information with the clinic's information system: receive data on the required examinations and transmit the results of the examinations performed.
